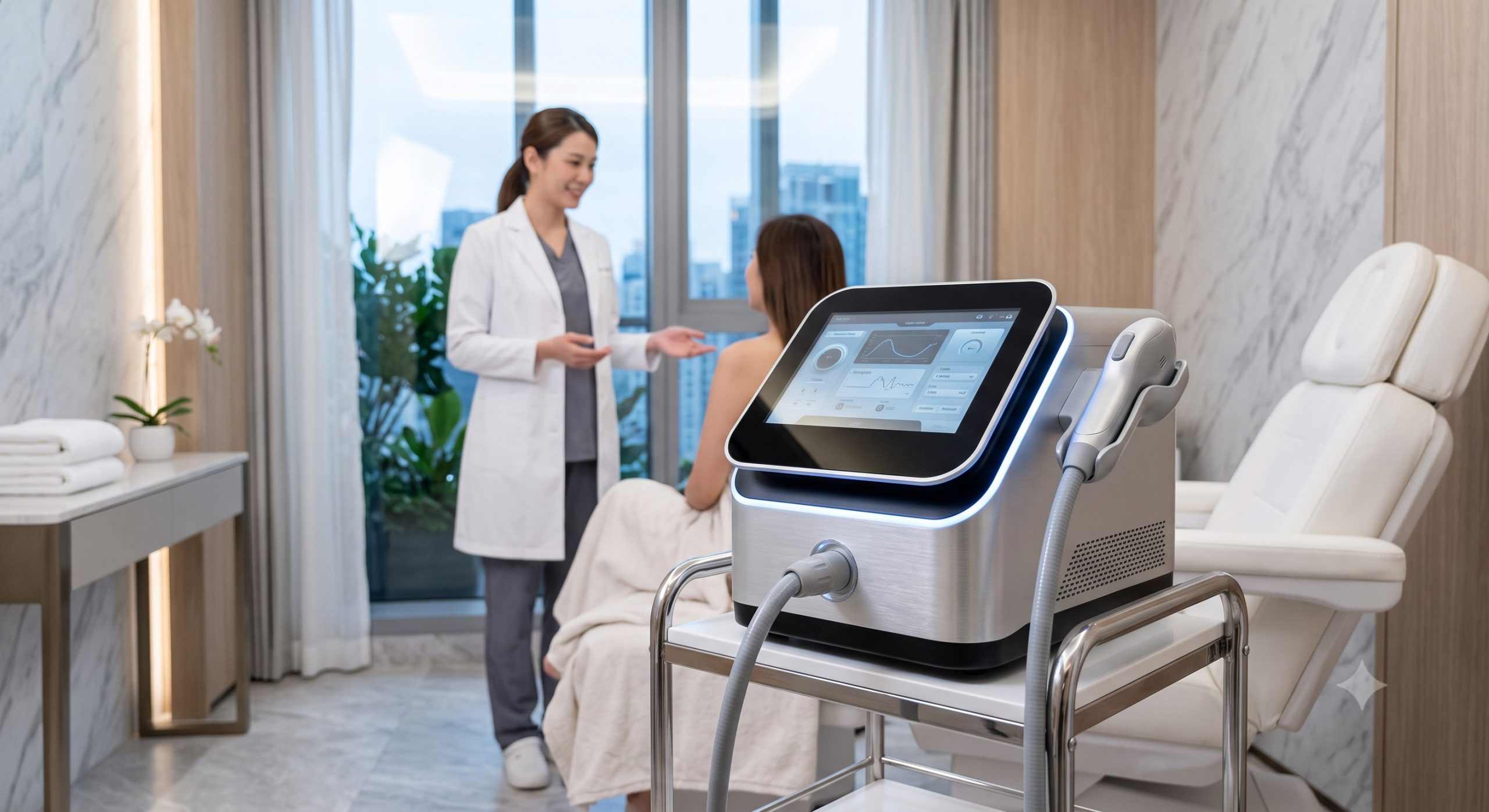

CO2 Fractional Laser – Clinical Architecture & Performance Reference Manual

CLINICAL ARCHITECTURE & PERFORMANCE REFERENCE MANUAL: CO2 FRACTIONAL LASER

EXECUTIVE SUMMARY

The CO2 Fractional Laser System represents a paradigm shift in dermatological and aesthetic tissue remodeling. Engineered for precision and safety, this device utilizes a 10,600nm wavelength to deliver controlled, fractional photothermolysis. By creating microscopic thermal zones (MTZs) within the dermis, the system triggers a rapid, robust endogenous wound healing response, promoting neocollagenesis and elastin synthesis without compromising the integrity of the surrounding tissue. This manual serves as the definitive clinical and technical reference for qualified medical professionals, detailing the system’s architecture, operational protocols, and safety compliance frameworks for optimal patient outcomes in medical spas and dermatology clinics.

CLINICAL ARCHITECTURE & DESIGN

The system is built upon a high-stability, sealed CO2 laser resonator, delivering a peak power output that is precisely regulated by a proprietary radio-frequency (RF) excitation module. The optical delivery system utilizes a 7-axis articulated arm with gold-coated mirrors to ensure minimal energy loss from the source to the handpiece. At the core of its design is the proprietary Intelligent Fractional Technology (IFT), which dynamically adjusts the pulse energy and density based on real-time skin impedance feedback. The chassis incorporates a high-efficiency, closed-loop water cooling circuit coupled with a thermoelectric (TEC) chiller, ensuring thermal stability for prolonged operational periods and consistent beam profile integrity. The intuitive 15.6-inch capacitive touchscreen interface serves as the command center, offering preset treatment protocols and granular manual control over all critical parameters.

KEY INDICATIONS & CAPABILITIES

The CO2 Fractional Laser is indicated for a comprehensive range of dermatological conditions and aesthetic concerns. Primary applications include the reduction of fine lines, deep rhytides, and solar elastosis. It is highly effective for the treatment of atrophic and hypertrophic scars, including acne scars and surgical scars. Additional capabilities extend to the management of benign epidermal and dermal lesions, such as seborrheic keratosis, actinic cheilitis, and xanthelasma. The system’s versatility allows for both superficial ablation and deep dermal coagulation, making it suitable for full-field resurfacing and targeted fractional treatments across various Fitzpatrick skin types, with appropriate pre-treatment protocols.

COMPLIANCE & STANDARDS

This medical device is manufactured in strict accordance with ISO 13485:2016 quality management systems. It holds CE marking (Class IIb) and has received 510(k) clearance from the U.S. Food and Drug Administration (FDA) for dermatological use. The system complies with IEC 60601-1 (Medical Electrical Equipment) and IEC 60825-1 (Safety of Laser Products). The integrated safety systems, including a key switch, emergency stop, and a patient-ready audible/visual ready indicator, ensure compliance with Class 4 laser safety requirements. A rigorous electromagnetic compatibility (EMC) testing regimen confirms the device’s immunity to external interference and its lack of deleterious emissions.

TECHNICAL SPECIFICATIONS

The CO2 Fractional Laser is a class 4 medical laser system. Its primary emission wavelength is 10,600nm. The device operates at an average output power range of 10 to 40 Watts, with a peak pulse power exceeding 150 Watts in ultra-pulse mode. The scanning handpiece delivers a fractional beam with a spot size of 120µm, offering adjustable coverage rates from 5% to 95% via a variable scan pattern. The maximum treatment area is 20mm x 20mm. The system features a dedicated cool-scanning mode with a pre-cooling mechanism to enhance patient comfort. It is powered by a standard 110-240V AC, 50/60Hz power supply with a maximum power consumption of 800VA. Physical dimensions are 45cm (W) x 55cm (D) x 120cm (H), with a weight of approximately 55kg. The system includes a water-cooled chiller unit and an articulated arm with a balanced handpiece for ergonomic operation.

Parameter	Specification
Laser Type / Wavelength	CO2 / 10,600nm
Average Output Power	10 – 40 Watts
Peak Pulse Power	> 150 Watts (Ultra-Pulse Mode)
Fractional Spot Size	120µm
Coverage Rate	5% – 95% (Variable)
Max Treatment Area	20mm x 20mm
Cooling System	Integrated TEC + Water + Air
Power Supply	110-240V AC, 50/60Hz, 800VA
Dimensions (W x D x H)	45cm x 55cm x 120cm
Weight	~55kg
Regulatory Compliance	CE (Class IIb), FDA 510(k)

CLINICAL PROTOCOLS

Pre-treatment protocols mandate a thorough patient consultation, including a medical history review, Fitzpatrick skin typing, and a test spot procedure 24-48 hours prior to the full treatment. A topical anesthetic (e.g., 5% lidocaine/7% tetracaine) is applied for 45-60 minutes under occlusion to mitigate discomfort. During treatment, the system is set to the appropriate mode: Active FX (for superficial resurfacing) or Deep FX (for dermal remodeling). Pulse energy is typically ranged from 10mJ to 50mJ per microscopic treatment zone, with density settings from 5% to 25% depending on the severity of the condition and the treated area. The handpiece is applied perpendicular to the skin, with a uniform scanning motion to ensure consistent coverage. Post-treatment, the skin is cleansed and a soothing ointment (e.g., petrolatum-based) is applied to promote healing. Patients are advised to avoid direct sunlight and adhere to strict sun protection regimen (SPF 50+) for a minimum of 3-6 months post-procedure.
