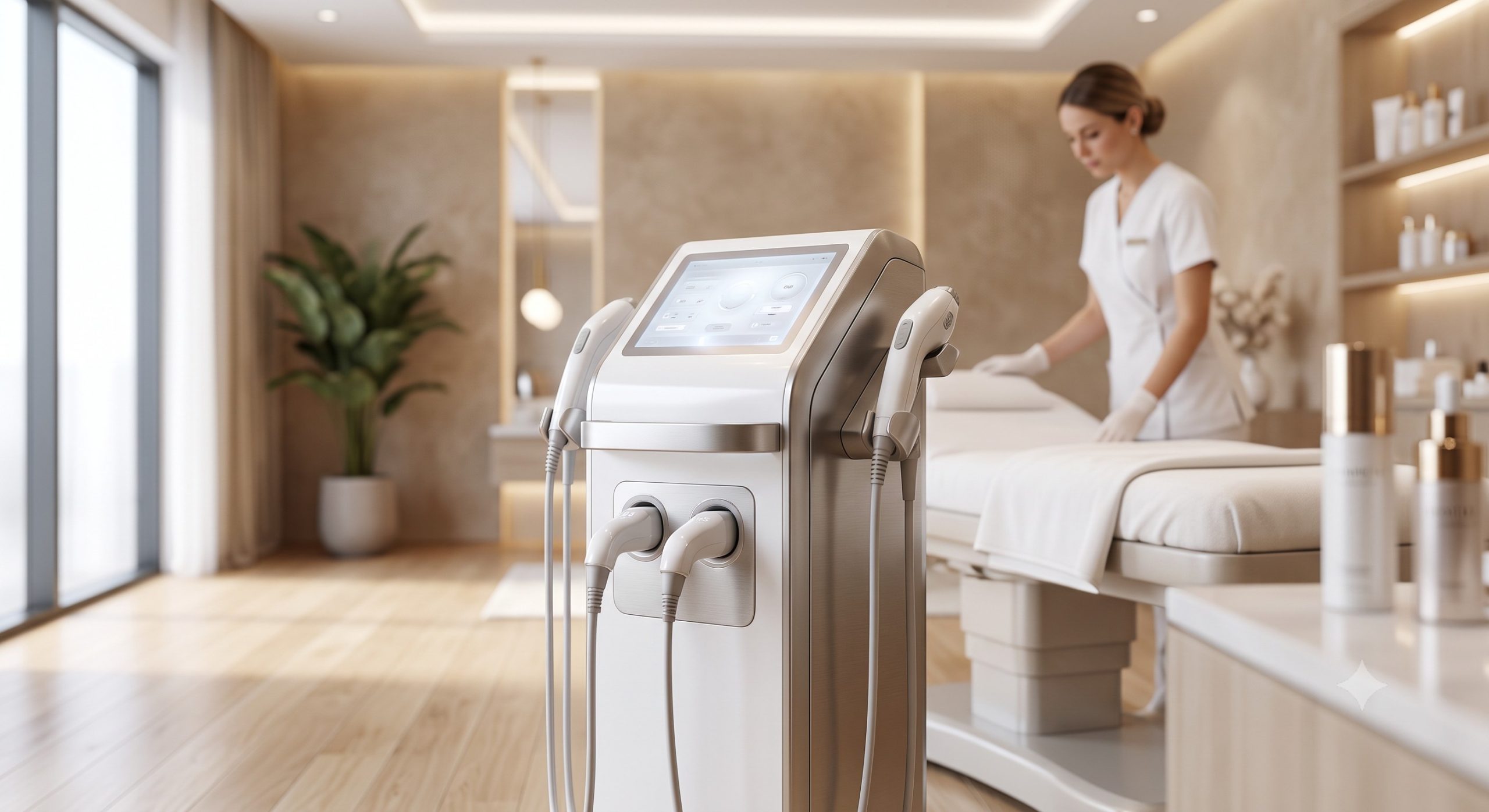

Dual Thulium Laser Machine – Clinical Architecture & Performance Reference Manual

CLINICAL ARCHITECTURE & PERFORMANCE REFERENCE MANUAL: DUAL THULIUM LASER MACHINE

EXECUTIVE SUMMARY

This document serves as the official clinical overview and technical datasheet for the advanced Dual Thulium Laser Machine, a premier medical aesthetic device engineered for superior precision and efficacy. Designed by a leading OEM manufacturer, this platform integrates dual-wavelength thulium laser technology to address a broad spectrum of dermatological and aesthetic indications, including onychomycosis, benign pigmented lesions, and skin resurfacing. The system is characterized by its high peak power, variable pulse widths, and an advanced integrated cooling mechanism, ensuring both exceptional clinical outcomes and a superior patient comfort profile. This whitepaper provides a comprehensive analysis of the device’s clinical architecture, technical specifications, and operational protocols for healthcare professionals and clinic administrators.

CLINICAL ARCHITECTURE & DESIGN

The Dual Thulium Laser Machine is built upon a foundation of sophisticated optical engineering and robust system integration. At its core, the system utilizes a solid-state laser source that emits in the infrared spectrum, specifically around the 1.9 to 2.0 µm wavelength range, which is highly absorbed by water and target chromophores. The “dual” designation refers to the system’s capability to operate at two distinct, optimized wavelengths or pulse modalities within the thulium family, allowing clinicians to tailor treatments for different tissue depths and conditions. The laser energy is delivered through a highly articulated, durable handpiece, designed for precise and intuitive application. This handpiece features an integrated, high-performance cooling system that actively manages epidermal temperatures, maximizing patient safety and comfort during treatment.

KEY INDICATIONS & CAPABILITIES

The Dual Thulium Laser Machine is indicated for a wide array of medical and aesthetic procedures. Its primary applications include the treatment of onychomycosis (fungal nail infections) by penetrating the nail plate to destroy fungal pathogens, the removal of benign pigmented lesions, and fractional skin resurfacing for the improvement of skin texture, tone, and appearance. The system’s dual-wavelength architecture provides a significant clinical advantage, offering the practitioner the flexibility to treat superficial conditions with a shallow-penetrating, high-fluence beam and deeper dermal conditions with a longer-penetrating, lower-fluence profile. This versatility, combined with a sophisticated computer-controlled scanning system, ensures uniform energy delivery and reproducible clinical results, making it an indispensable asset for any modern dermatology or med spa practice.

COMPLIANCE & STANDARDS

The Dual Thulium Laser Machine is engineered and manufactured in strict accordance with the highest international standards for medical device safety and performance. It complies with all relevant requirements of the Medical Device Regulation (MDR) for CE marking and is rigorously tested to meet the safety standards set forth by the U.S. Food and Drug Administration (FDA) for its specific indications. The device is classified as a Class II medical device and conforms to the essential requirements of IEC 60601-1 for medical electrical equipment, IEC 60825-1 for laser product safety, and relevant ISO 13485 standards for quality management systems. Each unit undergoes extensive quality assurance and factory calibration to ensure it meets its specified performance parameters and operates safely in a clinical environment.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Laser Type / Wavelength	Solid-State Thulium Laser / 1927nm & 1940nm (Dual Wavelength)
Laser Class	Class IV (IEC 60825-1)
Average Power	Up to 60W (Configurable per Wavelength)
Peak Power	> 1000W
Pulse Duration	Selectable (e.g., 100 µs to 50 ms)
Repetition Rate	1 Hz to 50 Hz (User Adjustable)
Spot Size	Variable (e.g., 1mm, 3mm, 5mm) & Fractional Arrays
Cooling System	Integrated TEC + Sapphire Contact + Air + Liquid Cooling
Cooling Temperature Range	4°C to 10°C (Adjustable)
Scanning System	Computer-Controlled Motorized Scanning for Uniform Energy Delivery
Display Interface	High-Resolution 10.1″ Capacitive Touchscreen (Smart UI)
User Presets	Pre-configured Protocols for Onychomycosis, Pigmented Lesions, Resurfacing
Operating Voltage / Frequency	100-240V AC, 50/60Hz (Auto-Sensing)
Power Consumption	Max 800W
Dimensions (W x D x H)	Approx. 400mm x 450mm x 950mm (Console)
Weight	Approx. 45 kg (Main Console)
Safety & Compliance	CE (MDR), FDA-Cleared, IEC 60601-1, IEC 60825-1, ISO 13485

CLINICAL PROTOCOLS

Prior to each treatment session, a comprehensive patient consultation is mandatory to evaluate skin type, medical history, and treatment suitability. Standard operating procedures dictate the use of appropriate personal protective equipment (PPE), including wavelength-specific laser safety eyewear for both the operator and patient. Treatment parameters, including fluence, spot size, pulse duration, and scanning pattern, must be carefully selected based on the specific indication and patient’s tissue response. The integrated cooling system is activated during the pulse to maintain epidermal temperatures below the threshold for thermal injury. Post-treatment, patients should be advised on proper skincare and sun protection. It is imperative to adhere to the recommended maintenance and calibration schedule outlined in the full user manual to ensure the device’s longevity and consistent performance.
