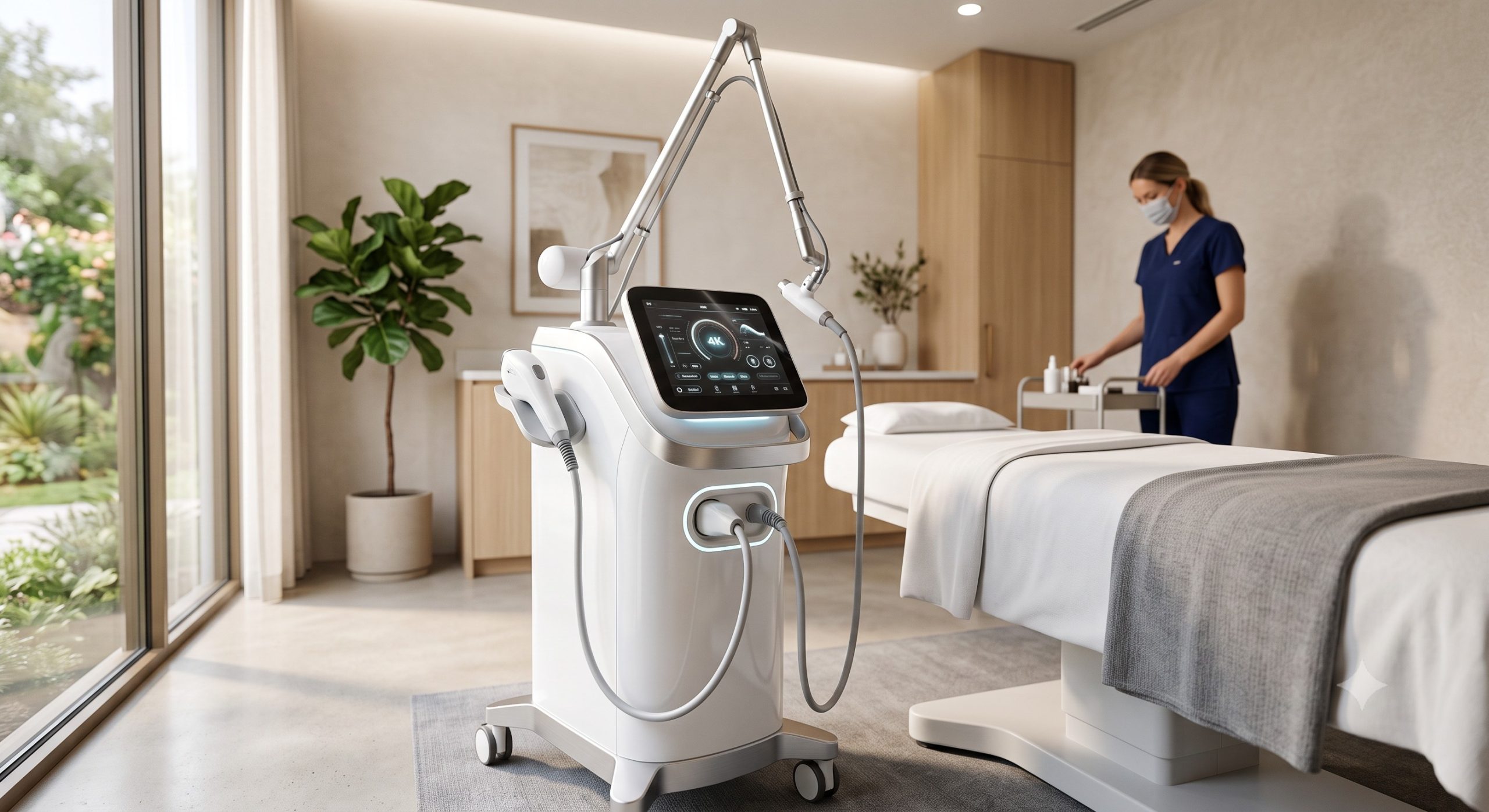

Picosecond vs Q-Switched – Premium Aesthetic Solution Brief: Deploying Picosecond vs Q-Switched in Med Spas

PICOSECOND VS Q-SWITCHED: COMPARATIVE CLINICAL ARCHITECTURE & PERFORMANCE REFERENCE MANUAL

EXECUTIVE SUMMARY

This document provides a comprehensive comparative analysis of picosecond (PS) and Q-switched (QS) Nd:YAG laser platforms for aesthetic dermatology. Both modalities operate on the principle of selective photothermolysis yet differ fundamentally in pulse duration, mechanism of action, and resultant clinical profiles. The Q-switched platform delivers nanosecond pulses that induce photothermal fragmentation of targeted chromophores, while picosecond technology employs ultra-short pulses (10⁻¹² seconds) that generate a predominant photomechanical effect via laser-induced optical breakdown (LIOB) and pressure wave generation. Recent split-face and randomized controlled trials have established that while both platforms demonstrate significant clinical efficacy for indications including photoaging, melasma, and pigmentary disorders, they present divergent safety, tolerability, and tissue response profiles that inform evidence-based device selection.

CLINICAL ARCHITECTURE & DESIGN PHILOSOPHY

The fundamental distinction between picosecond and Q-switched systems resides in pulse duration engineering. Q-switched Nd:YAG lasers operate within the nanosecond (10⁻⁹ s) domain, delivering energy pulses that induce rapid thermal expansion and subsequent fragmentation of melanin granules through photothermolysis. Fractional Q-switched platforms, such as the QSF-Nd:YAG, employ holographic beam splitting technology that divides the planar beam into either 25 or 81 smaller micro-beams, each possessing consistent energy distribution for precise photothermal tissue modulation .

Conversely, picosecond Nd:YAG lasers operate within the sub-nanosecond to picosecond (10⁻¹² s) regime, generating pulse durations typically ranging from 400 to 600 picoseconds . The picosecond platform utilizes microlens arrays (MLA) or diffractive optical elements (DOE) to partition the beam into high-fluence micro-columns, creating focal zones of intense energy against a lower-fluence background . This architecture enables dual-mode action: concurrent photothermal and photomechanical (LIOB) effects, which produce more complete pigment fragmentation into sub-micron particles that are more efficiently cleared by macrophages .

KEY INDICATIONS & COMPARATIVE CLINICAL EVIDENCE

Pigmentary Disorders

A retrospective comparative study of 131 patients with facial pigmentation disorders demonstrated that 730-nm picosecond laser therapy achieved significantly superior outcomes compared to 532-nm Q-switched Nd:YAG treatment. The picosecond group exhibited greater reduction in post-treatment pigmentation scores (2.55 ± 1.11 vs. 3.82 ± 1.45, p < 0.001) and a higher improvement rate (56% ± 10% vs. 38% ± 9%, p < 0.001). Multivariate analysis confirmed picosecond laser treatment as the strongest independent predictor of treatment success (Adjusted OR = 4.85, 95% CI 2.51–9.38, p < 0.001) . Photoaging Management A split-face study of 30 patients with facial photoaging undergoing five treatment sessions revealed both fractional 1064-nm picosecond (FxPico) and fractional Q-switched (QSF-Nd:YAG) lasers produced significant improvements in wrinkles, pores, and skin texture (p < 0.001). No statistically significant differences were observed in reduction rates of wrinkles (p = 0.805), pores (p = 0.943), or skin texture counts (p = 0.942). Histological examination confirmed increased dermal collagen formation and improved elastic fiber alignment in both groups, with picosecond treatment showing a more pronounced but non-significant trend in collagen proliferation . Melasma Treatment In a prospective randomized double-blind split-face trial of 16 Asian women (Fitzpatrick skin types III–IV) with melasma, both 1064-nm picosecond and Q-switched Nd:YAG lasers demonstrated significant hemi-mMASI reductions over time, with no statistically significant between-treatment differences detected at any follow-up point. Notably, pain scores after the first treatment session were significantly lower on the picosecond-treated side, suggesting improved patient tolerability . However, a separate evaluator-blinded trial of 40 participants (Fitzpatrick types III–IV) comparing Picosecond Alexandrite Laser (755 nm) with combined Q-switched and long-pulse Nd:YAG (QLNYL) for melasma found that the QLNYL group demonstrated significantly superior MASI score improvement overall (p = 0.010), with a 0% recurrence rate at 24 weeks versus 10.5% in the picosecond group . PAIN PROFILE & SAFETY CONSIDERATIONS Pain perception differs significantly between platforms. In the photoaging split-face study, average Visual Analog Scale (VAS) scores for QSF-Nd:YAG-treated areas were significantly lower (1.48 ± 1.35) compared to FxPico-treated areas (2.84 ± 0.98, p < 0.0001) . Similarly, the melasma trial comparing PSAL (755 nm) with QLNYL reported significantly higher pain scores for the picosecond group (p = 0.018) . Adverse event profiles: Both modalities demonstrate generally mild and self-limiting adverse events. Erythema duration (FxPico: 3.70 ± 1.19 days; QSF: p = 0.184) and resolution of petechiae/pinpoint bleeding (p = 0.800) showed no significant differences. Post-inflammatory hyperpigmentation (PIH) risk varies by wavelength and technique; 532-nm picosecond with fractional pigment toning technique demonstrated significantly reduced PIH incidence (8–36%) compared to conventional technique (64–96%) in solar lentigo treatment . COMPLIANCE & STANDARDS Both picosecond and Q-switched Nd:YAG laser systems are Class IV medical devices requiring adherence to international safety and performance standards. The platforms incorporate integrated safety interlocks, temperature stabilization systems, and emission monitoring for operational safety. Compliance with IEC 60825-1 (Laser Product Safety) and relevant regional regulations (FDA 21 CFR 1040.10, EU Medical Device Regulation 2017/745) is mandatory for clinical deployment. Clinical protocols should incorporate comprehensive pre-treatment assessment, including Fitzpatrick skin typing, medical history evaluation, and informed consent documentation highlighting modality-specific risk profiles. TECHNICAL SPECIFICATIONS

Parameter	Picosecond Nd:YAG (1064nm)	Q-Switched Nd:YAG (1064nm)
Pulse Duration	400 – 600 ps	Nanosecond (5-20 ns typical)
Mechanism of Action	Photomechanical (LIOB) + Photothermal	Photothermal (Subcellular Selective Photothermolysis)
Beam Delivery	Microlens Array (MLA) / Diffractive Optical Element (DOE)	Holographic Array Lens (25/81 micro-beams)
Fluence (Fractional Photoaging)	Lower fluence required (comparable clinical effect with less thermal diffusion)	Higher fluence required for collagen stimulation
Pain Score (VAS)	Higher (2.84 ± 0.98 for FxPico, p<0.0001)	Lower (1.48 ± 1.35 for QSF-Nd:YAG)
PIH Risk (Pigmentary)	Significantly lower with FPT technique (8-36%)	Higher with conventional technique (64-96%)
Post-treatment Erythema	3.70 ± 1.19 days (p=0.184 vs QS)	Comparable duration
Collagen Stimulation	Enhanced trend (not statistically significant)	Effective neocollagenesis

CLINICAL PROTOCOLS & TREATMENT PARAMETERS

Treatment protocols require careful parameter selection based on indication and skin type. For photoaging treatment using fractional 1064-nm platforms, typical protocols involve five treatment sessions at two-week intervals (weeks 0, 2, 4, 6, 8), with follow-up evaluations at 1 and 3 months post-treatment . For melasma management using 1064-nm platforms, three treatment sessions at four-week intervals are common, with assessment at 1, 2, 3, and 6 months post-final treatment .

Parameter selection considerations include fluence (typically lower for picosecond platforms due to higher peak power), spot size (fractional systems utilize micro-beam arrays for controlled tissue interaction), and cooling optimization. Multi-pass techniques (e.g., two passes covering 40% area for fractional pigment toning) may reduce PIH risk . Clinicians should note that picosecond platforms generally require lower fluences than Q-switched systems to achieve comparable clinical effect due to the ultra-short pulse duration photomechanical advantage.

CLINICAL RECOMMENDATIONS

Evidence-based platform selection should consider the following factors: For epidermal pigmentary disorders including solar lentigines and freckles, picosecond lasers (particularly 730-nm wavelength) demonstrate superior clearance rates and safety profiles compared to Q-switched alternatives . For melasma management, while both platforms are effective, the lower recurrence rate observed with combined Q-switched and long-pulse Nd:YAG in Fitzpatrick types III–IV suggests consideration of this modality for patients where relapse prevention is paramount .

For photoaging treatment, both fractional picosecond and fractional Q-switched 1064-nm platforms provide comparable clinical outcomes with excellent safety, though picosecond may offer enhanced collagen stimulation at the cost of increased intra-procedural pain . Clinicians should incorporate pain management protocols for picosecond procedures. The significantly lower pain scores associated with 1064-nm picosecond treatment in melasma patients compared to Q-switched suggests potential advantages for tolerability-sensitive patient populations .

DISCLAIMER: This document is intended for informational and educational purposes only. Clinical decision-making should be based on comprehensive patient assessment, appropriate training, and manufacturer-specific device guidelines.
