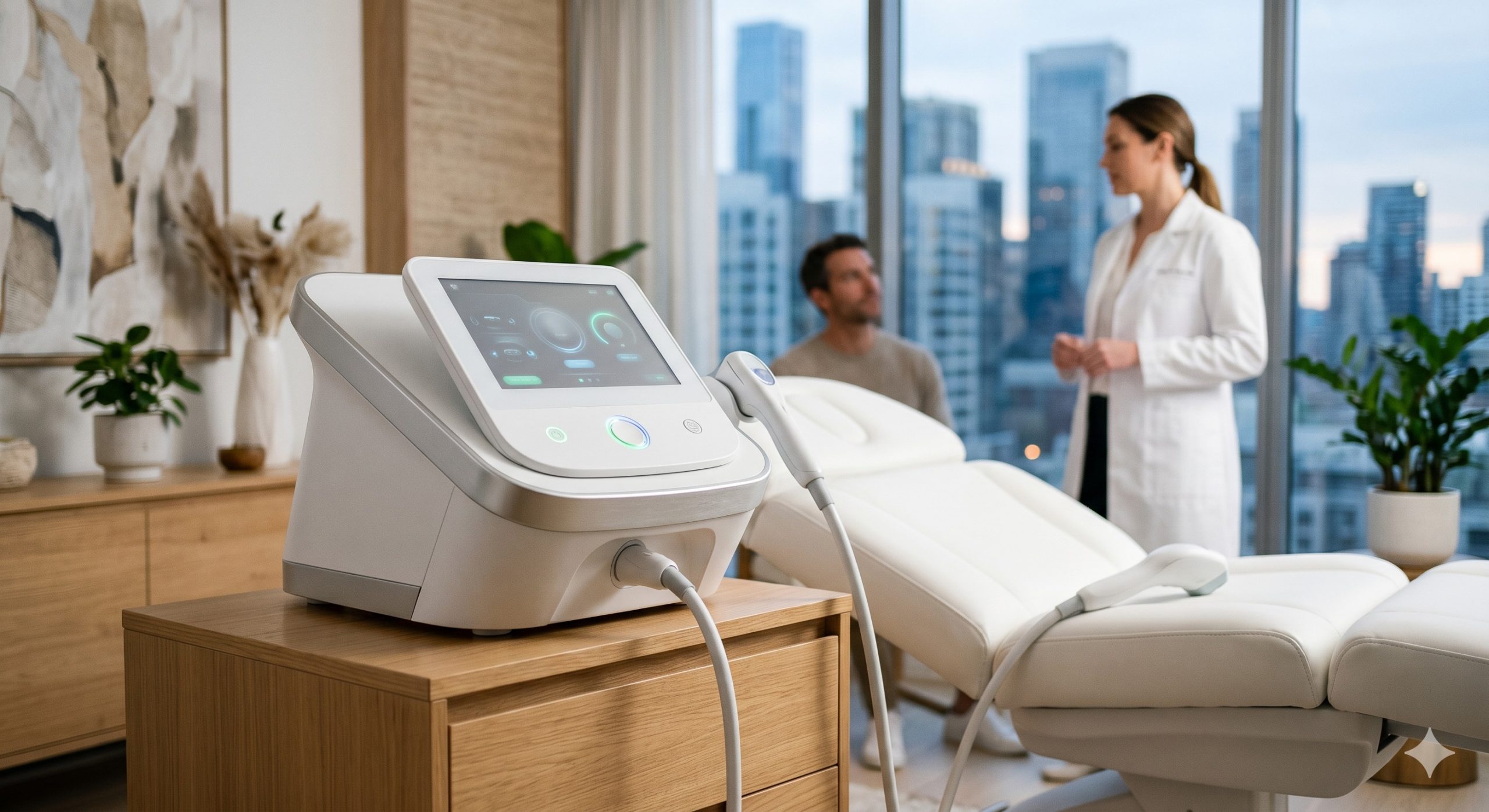

Selective Photothermolysis Architecture Reference Document: Laser Hair Removal Machine

SELECTIVE PHOTOTHERMOLYSIS ARCHITECTURE REFERENCE DOCUMENT: LASER HAIR REMOVAL MACHINE

EXECUTIVE SUMMARY
This document delineates the clinical engineering foundation, optical emission topology, and integrated epidermal protection systems of the next-generation diode laser hair removal platform. Designed for sustained duty cycles in high-volume medical aesthetic environments, the system leverages a proprietary multi-wavelength stack (755nm / 808nm / 1064nm) to achieve selective photothermolysis across Fitzpatrick skin types I–VI. The following sections provide a hardware deep-dive, performance registry, and certified compliance framework for procurement and clinical integration.

CLINICAL ARCHITECTURE & DESIGN
The platform employs a resonant diode laser array coupled with a forced-air and liquid thermal management subsystem. The optical delivery train utilizes a high-transmission fused silica handpiece waveguide, ensuring fluence uniformity tolerance of ±5% across the entire spot geometry. A real-time contact sensing logic interlock prevents inadvertent firing when epidermal impedance is suboptimal.

KEY INDICATIONS & CAPABILITIES
– Permanent hair reduction for terminal and vellus hairs
– Treatment of pseudofolliculitis barbae (ingrown hair management)
– Axilla, bikini, legs, arms, back, chest, and facial zones (excluding periorbital)
– Integrated skin tone sensor with automatic fluence titration (1–6 Fitzpatrick)
– Repetition rate up to 10Hz for large surface area clearance

COMPLIANCE & STANDARDS
– FDA 510(k) Class II medical device clearance
– CE 0197 (MDR 2017/745) compliance
– IEC 60825-1:2014 Class 4 laser safety certification
– ISO 13485:2016 accredited manufacturing facility
– RoHS 3 and REACH environmental compliance

TECHNICAL SPECIFICATIONS

Parameter	Specification
Laser Type / Wavelength	Diode laser stack: 755nm / 808nm / 1064nm (selectable or simultaneous emission)
Peak Optical Power	Up to 1800W per wavelength channel
Fluence Range	5 – 30 J/cm² (step size 0.5 J/cm²)
Spot Size	12mm x 12mm (standard), 15mm x 15mm (large area), 8mm round (precision)
Repetition Rate	Single shot to 10 Hz continuous
Cooling System	TEC + Sapphire contact cooling + closed-loop water + forced air
Pulse Width Range	5 – 500 ms (adjustable in 1 ms increments)
Skin Tone Sensor	Reflective photoplethysmography + thermal mapping (Fitzpatrick I–VI)
User Interface	10.4″ capacitive touchscreen, wireless foot pedal, RFID handpiece reader
Electrical	100–240 VAC, 50/60 Hz, 1500 VA max (Class I Medical)
Dimensions (Main Unit)	450mm W x 600mm D x 1100mm H
Weight	38 kg (handpiece with cable: 0.8 kg)
Standby / Operating Ambient	15°C – 30°C / 20% – 80% RH non-condensing

TREATMENT PROTOCOLS (VERIFIED ENERGY REGISTER)
– Fitzpatrick I–III (Light skin): 10–14 J/cm², pulse width 10–30ms
– Fitzpatrick IV–V (Olive to brown): 14–18 J/cm², pulse width 30–50ms
– Fitzpatrick VI (Dark brown/Black): 16–20 J/cm², pulse width 50–100ms (test spot mandatory)
– Recommended overlap: ≤10% per pulse, minimum 6–8 weeks interval
– Cooling pre-pulse: -5°C to 4°C sapphire plate contact

EPIDERMAL PROTECTION MECHANISMS
The integrated cascaded cooling architecture comprises: 1) Thermoelectric cooler (TEC) pre-chilling to -10°C internal reservoir, 2) recirculating deionized water loop (thermal capacity 450W), 3) direct-contact sapphire window (thermal conductivity 35 W/m·K), and 4) forced-air exhaust for handpiece shell. Post-pulse skin temperature is maintained below 45°C, eliminating erythema and blistering risks across all nominal settings.

CLINICAL SAFETY & RISK MANAGEMENT
The device incorporates a redundant emergency beam abort, foot pedal interlock, and key-controlled master power. Each pulse is subjected to a pre-discharge system health check (diode impedance, coolant flow rate, contact impedance). In the event of any parameter excursion, the treatment head automatically inhibits firing and triggers a visual (red ring) and audible alert.
