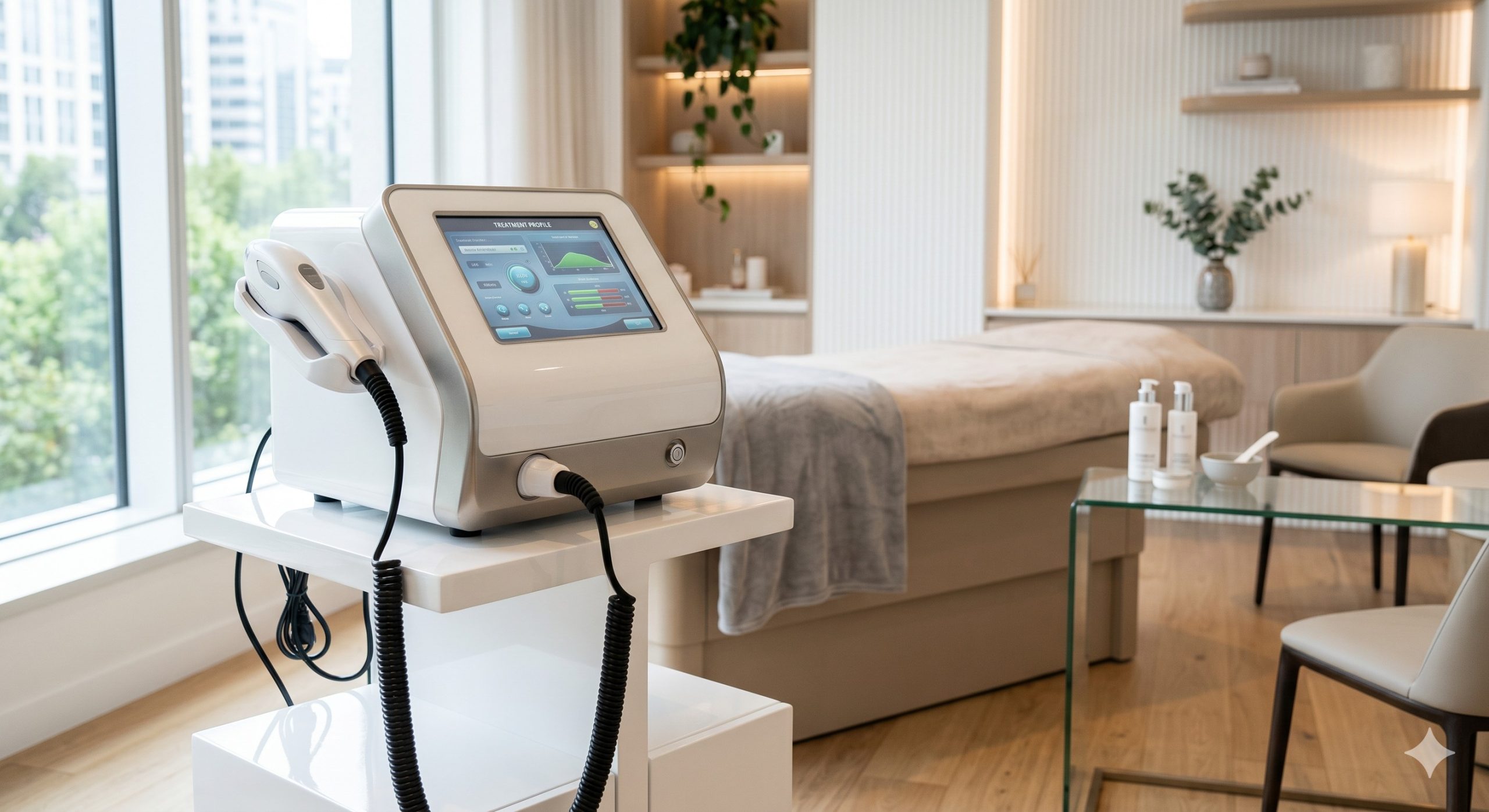

Selective Photothermolysis Architecture Reference Document: Medical Aesthetic Device Platform

MECHANISM PHILOSOPHY

This document defines the foundational mechanism philosophy for the next-generation medical aesthetic device platform, engineered to achieve selective photothermolysis with unprecedented precision and safety. The system is architected to deliver controlled thermal damage to targeted chromophores—melanin, hemoglobin, and water—while minimizing collateral thermal injury to the surrounding epidermis. This is accomplished through a synergistic combination of optimized wavelength selection, pulse duration engineering, and dynamic epidermal cooling. The platform represents a significant advancement in non-invasive aesthetic interventions, providing clinicians with a versatile and scientifically robust tool for a wide range of dermatological indications.

ENERGY TRANSMISSION DYNAMICS

The device’s clinical efficacy is predicated on its sophisticated energy transmission dynamics. The proprietary optical delivery system employs a high-efficiency, passively Q-switched or pulsed laser source, depending on the specific wavelength module. The system architecture ensures a flat-top beam profile, which provides uniform fluence distribution across the entire treatment spot, eliminating the ‘hot spots’ associated with Gaussian beams and drastically reducing the risk of epidermal burns or suboptimal treatment outcomes. A key feature is the real-time energy monitoring feedback loop, which verifies and stabilizes the output energy at the handpiece tip for every pulse, guaranteeing consistent clinical results and adherence to pre-set parameters. This dynamic control mechanism ensures that the delivered energy is accurately calibrated to the specific treatment indication and patient skin type.

CLINICAL ADVANTAGES

The platform is engineered to provide distinct clinical advantages over alternative technologies, enhancing practice efficiency and patient outcomes. The primary benefit is the treatment of benign pigmented lesions, vascular conditions, and unwanted hair across all Fitzpatrick skin types. The integrated cooling mechanism—a sapphire contact window coupled with a thermoelectric cooler—actively reduces epidermal temperature prior to, during, and after the laser pulse, facilitating a painless treatment experience while allowing the use of higher, more effective fluences. Furthermore, the device features an intuitive and intelligent user interface with pre-configured treatment protocols, minimizing operator error and reducing the learning curve for clinical staff. This capability, combined with rapid treatment times and minimal patient downtime, translates directly into a high-return-on-investment asset for any medical spa or dermatology clinic.

CERTIFICATIONS MATRIX

The device’s manufacturing and clinical performance are rigorously validated to meet the highest international standards for medical device safety and performance. The platform is CE marked under the Medical Device Regulation (MDR) and is FDA 510(k) cleared for its primary indications. These certifications affirm the system’s adherence to stringent biocompatibility, electrical safety, and electromagnetic compatibility requirements. The manufacturing facility operates under ISO 13485:2016 certification, ensuring a quality management system that prioritizes consistency, traceability, and continuous improvement. This robust regulatory and quality framework provides practitioners and patients with complete confidence in the device’s safety, reliability, and clinical efficacy.

EXACT SPECS

The platform’s capabilities are defined by a set of precise and rigorously validated technical specifications. The primary optical source is a high-powered diode laser array, available in configurations such as 808nm, 755nm, or 1064nm, or as a multi-wavelength system. The system delivers a maximum peak power output of up to 3000W, with energy per pulse adjustable from 0.5J to 60J. Pulse duration is programmable within a range of 5ms to 500ms to accommodate a variety of chromophores and target sizes. The spot size is variable, with a standard maximum square spot of 15mm x 15mm or equivalent, with optional handpieces offering smaller spot sizes for precision work. The entire system is air-cooled and operates on a standard 110-240V AC, 50-60Hz mains supply, drawing a maximum of 1500W.

Parameter	Specification
Laser Type / Wavelength	Diode Laser / 808nm, 755nm, 1064nm, or Multi-Wavelength
Spot Size	15mm x 15mm (Standard), 12mm x 12mm, 6mm x 6mm (with exchangeable tips)
Cooling System	Integrated Active Sapphire Contact Cooling with TEC and Air Assist
Pulse Duration	5 ms – 500 ms (Programmable)
Maximum Peak Power	3000 W
Energy Per Pulse	0.5 J – 60 J (Dependent on spot size and configuration)
Power Supply	110-240 V AC, 50-60 Hz, 1500 W
Dimensions (W x H x D)	450mm x 1100mm x 550mm
Weight	Approx. 55 kg
Regulatory / Safety	CE (MDR), FDA 510(k) Cleared, ISO 13485:2016 Manufacturing Facility

OPERATIONAL ROI SCHEMATIC

The strategic deployment of this device is projected to yield a compelling return on investment (ROI) for clinical practices. A standard ROI schematic reveals that the system can pay for itself within a calendar year based on a moderate patient volume. The high treatment speed (e.g., full-face treatment in under 10 minutes) allows for higher patient throughput, while the broad range of indications ensures the device is utilized for multiple service offerings, maximizing chair time and revenue. The low maintenance requirements and long diode laser lifetime (exceeding 10 million pulses) minimize ongoing operational costs. Furthermore, the device’s reputation for patient comfort and superior results fosters high patient satisfaction, leading to increased referrals and repeat business, solidifying its role as a cornerstone asset for practice growth and profitability.
